IVAAP EKS Deployment Dependencies¶

This guide will highlight details specific to deploying the IVAAP Helm Template into an AWS EKS cluster. There are no special requirements for the EKS cluster, but it is important that the worker nodes are large enough to accomodate the backend pod. For details, refer to the Multi-host Orchestration Environments of the IVAAP Technical Datasheet.

It is important to note - this guide does not go into full deployment and configuration details. This guide only contains deployment details specific to AWS EKS deployments. Throughout this guide, there will be links referencing to other guides. The primary guide for deployment configuration is the General Helm Configuration Guide.

Configuring Helm for EKS¶

The IVAAP Helm template is universal, and the only major difference between cluster types is the ingress controller that is created. To ensure IVAAP uses the correct ingress controller for your cluster, .Values.environment.type.aws.enabled must be set to true.

environment:
  type:
    aws:
      enabled: ''

RDS PostgreSQL Database¶

For EKS deployments, an external PostgreSQL database is required. Since EKS is on AWS, it is recommended to use the RDS service in the same VPC as the EKS Cluster. This allows for the RDS database to be private, and have direct connection to the EKS.

For in-depth details on setting up this database, refer to IVAAP Deployment Operations Guide - Database Administration.

Additionally, refer to the PostgreSQL Requirements section of the IVAAP Technical Data Sheet.

IVAAP Secrets¶

Configuring AWS Secrets Manager¶

If deploying to an EKS cluster, the IVAAPHelmTemplate supports ingesting secrets from AWS Secrets Manager.

secrets:
  type:
    ######################################
    ##       AWS Secrets Manager        ##
    ######################################
    awsSecretsManager:
      enabled: ""
      serviceAccount:
        name: ""                  # ----- Name of your service account to be created
        iamRoleArn: ""            # ----- Arn of the IAM role for the secret access. Ex: arn:aws:iam::123456789000:role/ivaap-secret
      secretName: ""              # ----- The name of your secret in AWS Secrets Manager - this secret should contain all keys/value

Pre-requisites for this configuration are:

Create a secret in AWS Secrets manager.
- This needs to be a single secret, with Secret type selection "Other type of secret." In this secret, multiple keys and values should be set.
- Must contain all keys and values under each secret reference.
- Automatic Rotation is not supported

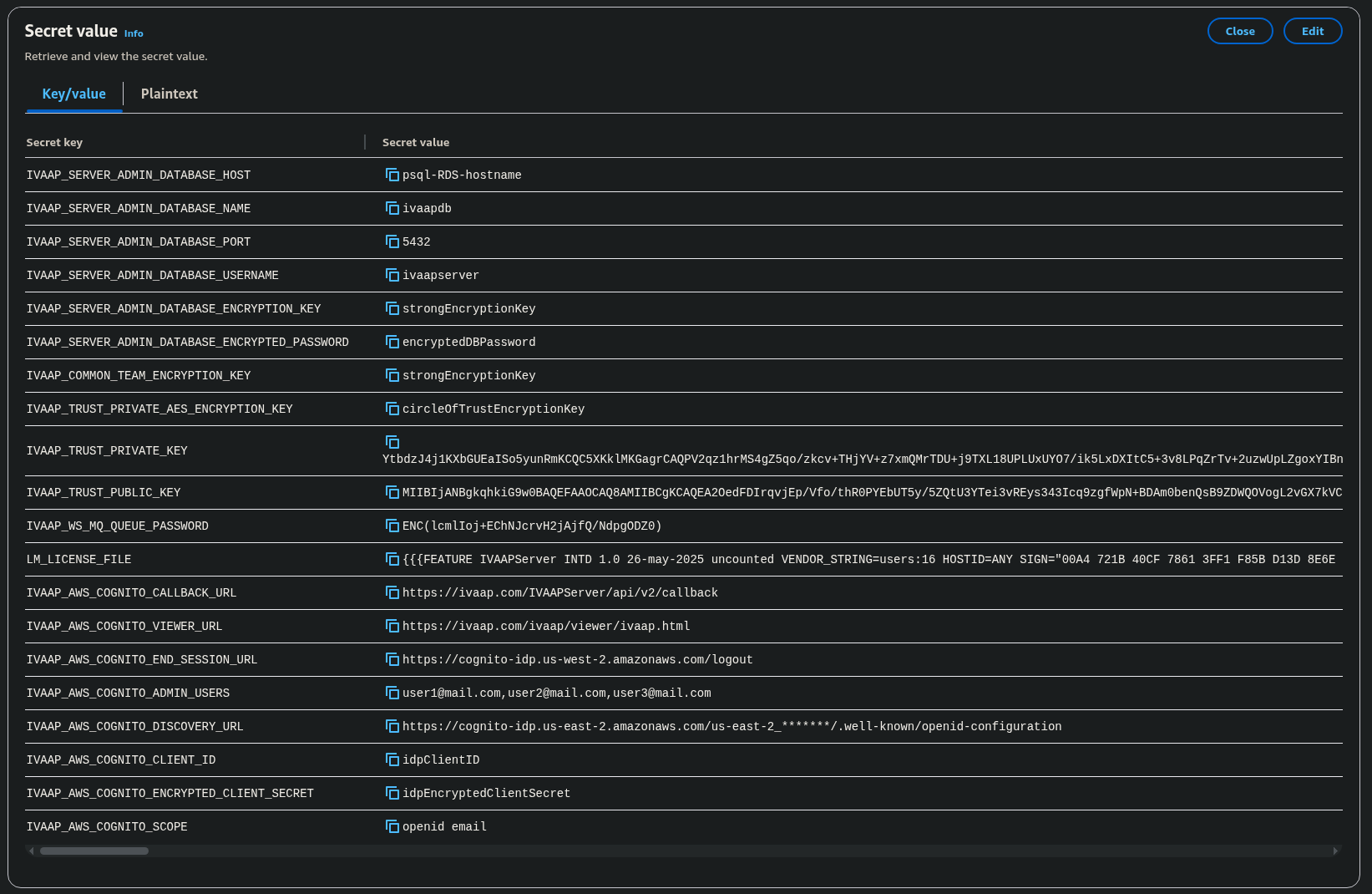

AWS Secret Example

Create a Role in AWS to allow your EKS cluster to get the secrets. The following custom trust relationship example allows the role to attach to the specified namespace and service account.
- OIDC Provider ARN can be found on the overview tab of the EKS cluster page in the AWS Console.
- Service account name in the role must match the service account name specified in .Values.secrets.type.awsSecretsManager.serviceAccount.name

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "arn:aws:iam::245634265005:oidc-provider/<OIDC_PROVIDER_ARN>"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringLike": {
                    "<OIDC_PROVIDER_ARN>": "system:serviceaccount:<NAMESPACE>:<SERVICE_ACCOUNT_NAME>"
                }
            }
        }
    ]
}

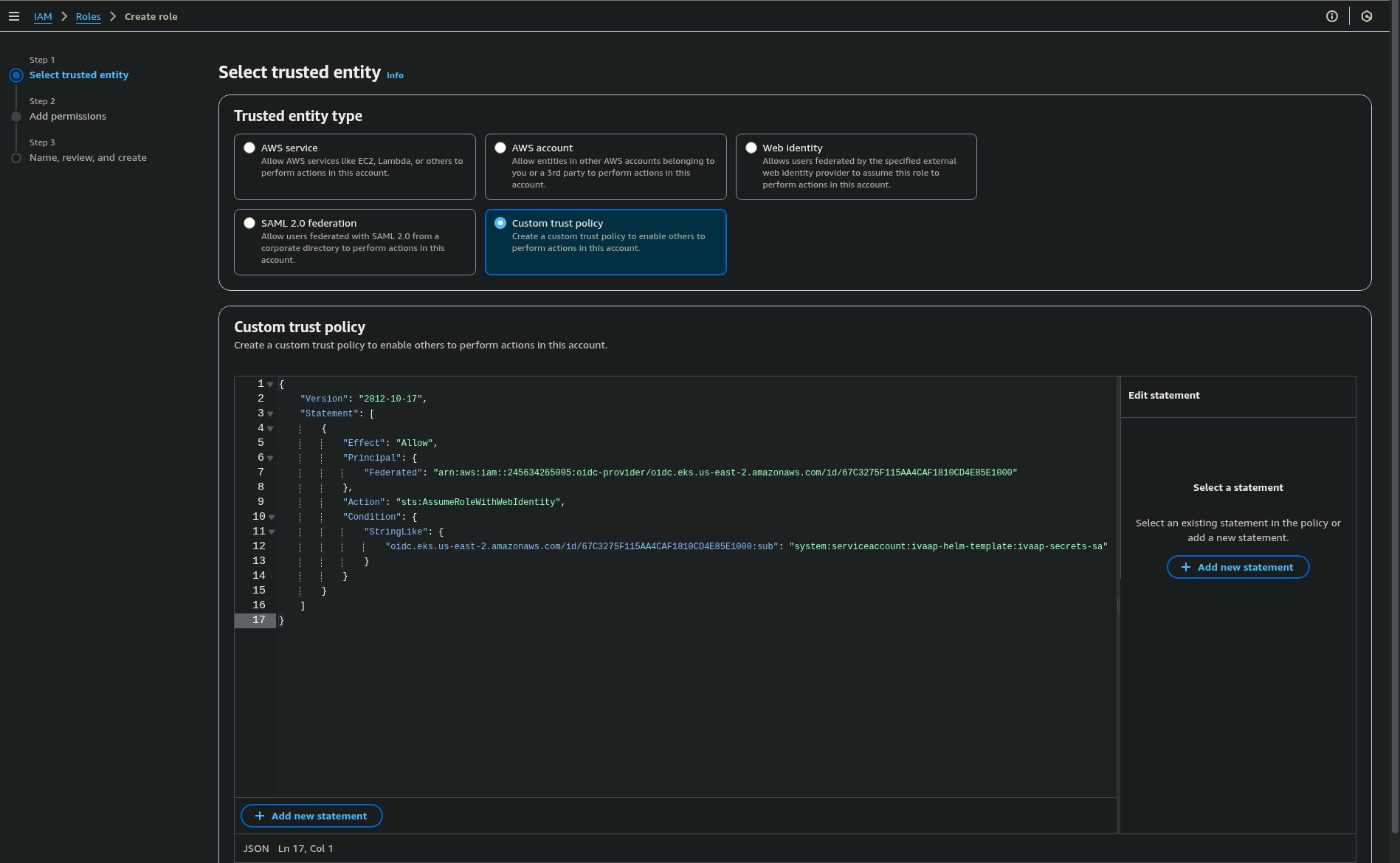

AWS Role Policy Example

Attach a permissions policy to the newly created Role that allows access to the Secrets Manager secret. The following allows access to the secret named ivaap-secrets:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "secretsmanager:GetSecretValue",
                "secretsmanager:DescribeSecret"
            ],
            "Resource": [
                "<IVAAP_SECRETS_ARN>"
            ]
        }
    ]
}

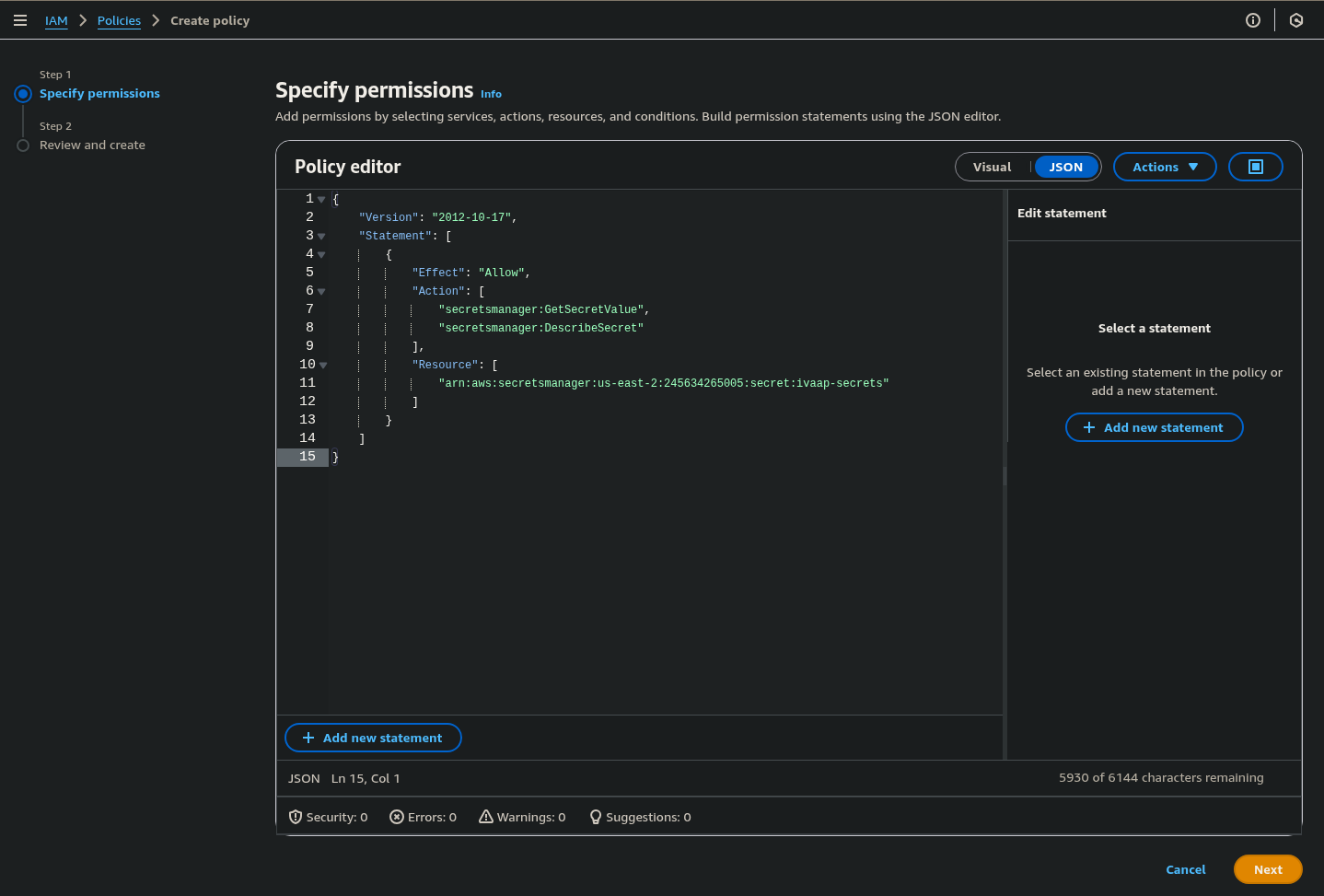

AWS Permission Policy Example

Once these have been created, they can be configured in the Helm Template.

secrets:
  type:
    awsSecretsManager:
      enabled: true
      serviceAccount:
        name: "ivaap-secrets-sa"
        iamRoleArn: "arn:aws:iam::245634265005:role/ivaap-helm-template-secrets-role"
      secretName: "ivaap-secrets"

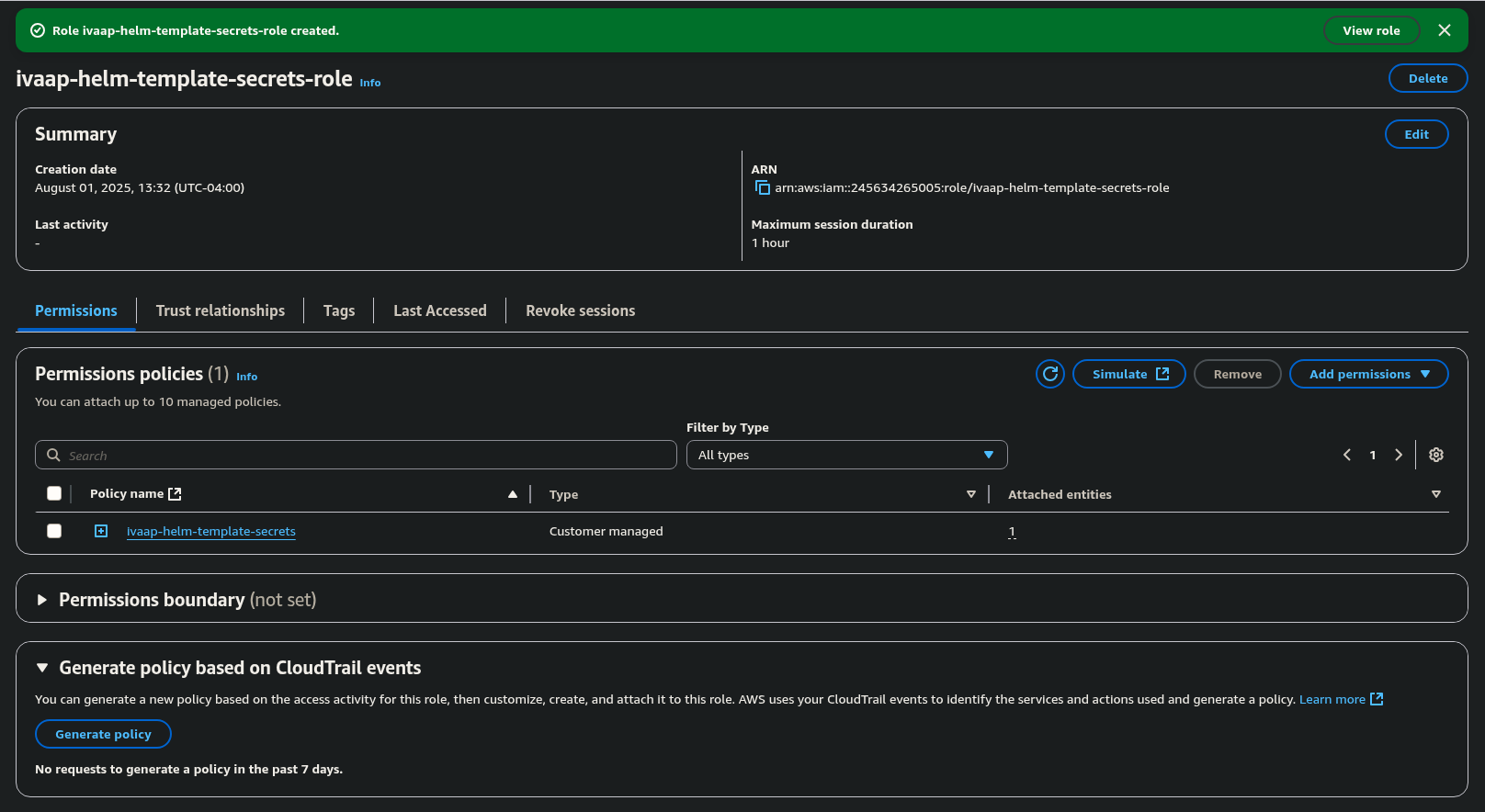

.Values.secrets.type.awsSecretsManager.serviceAccount.iamRoleArn can be found on the main page for the newly create role in the AWS Console.

AWS Role Arn

Native Kubernetes secrets¶

Native kubernetes secrets can be used if you do not wish to use AWS Secrets Manager.

For steps on how to configure kubernetes secrets, refer to General Helm Configuration Guide's section on native kubernetes secrets.

TLS¶

On EKS, TLS is terminated at the Application Load Balancer (ALB) using an ACM certificate rather than inside the IVAAP ingress proxy. This is the recommended production path — AWS-managed certificates renew automatically, the ALB handles SNI and modern cipher policies, and the IVAAP pods can stay on plain HTTP behind the ALB.

Bootstrap exception

ivaap generate-yaml emits a bootstrap values YAML with configmap.proxy.IVAAP_HYPERTEXT_PROTOCOL: "http" and TLSSecret.enabled: false so a fresh install can be validated end-to-end before TLS is in place. Bootstrap is not a production end state — promote to the ACM-on-ALB path below before exposing IVAAP to users. See Post-Deployment Advanced Configuration for the full go-live flow.

Primary path — ACM certificate on ALB¶

Prerequisites:

The AWS Load Balancer Controller is installed in the cluster (kubectl get pods -n kube-system | grep aws-load-balancer-controller).
A public DNS name for the IVAAP deployment, with a Route53 hosted zone (or external DNS) you can point at the ALB.
An ACM certificate in the same region as the EKS cluster covering the IVAAP FQDN. Note the certificate ARN — you will pass it to the chart.

Configure the chart to enable the ACM integration and provide the certificate ARN. The default ALB annotations (scheme: internet-facing, target-type: ip, listen-ports, ssl-redirect: 443) are baked into the chart's AWS ingress template — set only the ACM-specific values:

environment:
  type:
    aws:
      enabled: true
      acm:
        enabled: true
        certificateArn: arn:aws:acm:us-west-2:123456789012:certificate/<CERT_ID>
  TLSSecret:
    enabled: false               # ALB handles TLS — no in-cluster TLS secret
configmap:
  proxy:
    # Always "https" whenever the public-facing URL is HTTPS — regardless of where TLS terminates.
    # Drives proxy-side URL construction, OIDC callbacks, and Secure cookie behavior.
    IVAAP_HYPERTEXT_PROTOCOL: "https"

When environment.type.aws.acm.enabled is true, the chart's AWS ingress template renders alb.ingress.kubernetes.io/certificate-arn against environment.type.aws.acm.certificateArn. After Helm upgrade, the AWS Load Balancer Controller provisions an ALB with the ACM cert attached. Create a Route53 alias record (or external DNS entry) pointing the IVAAP FQDN at the ALB's DNS name. Renewal is automatic via ACM — no further action required.

Fallback path — in-cluster TLS Secret¶

When ACM-on-ALB is not available (private clusters, ALB controller not installed, or a corporate cert that ACM cannot import), TLS can be terminated inside the IVAAP ingress proxy using a Kubernetes tls secret. See TLS Secret in the General Helm Configuration guide for the chart values and secret creation steps.

This path requires manual certificate rotation and is recommended only when ACM is genuinely unavailable.
